CAN Checked – MFD15 52mm CAN Gauge

  • Sale
  • Regular price $469.00


CAN Checked – MFD15 52mm CAN Gauge

$399.00

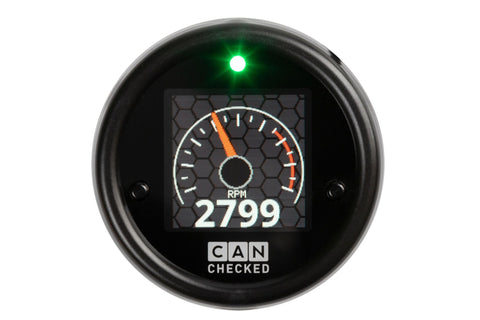

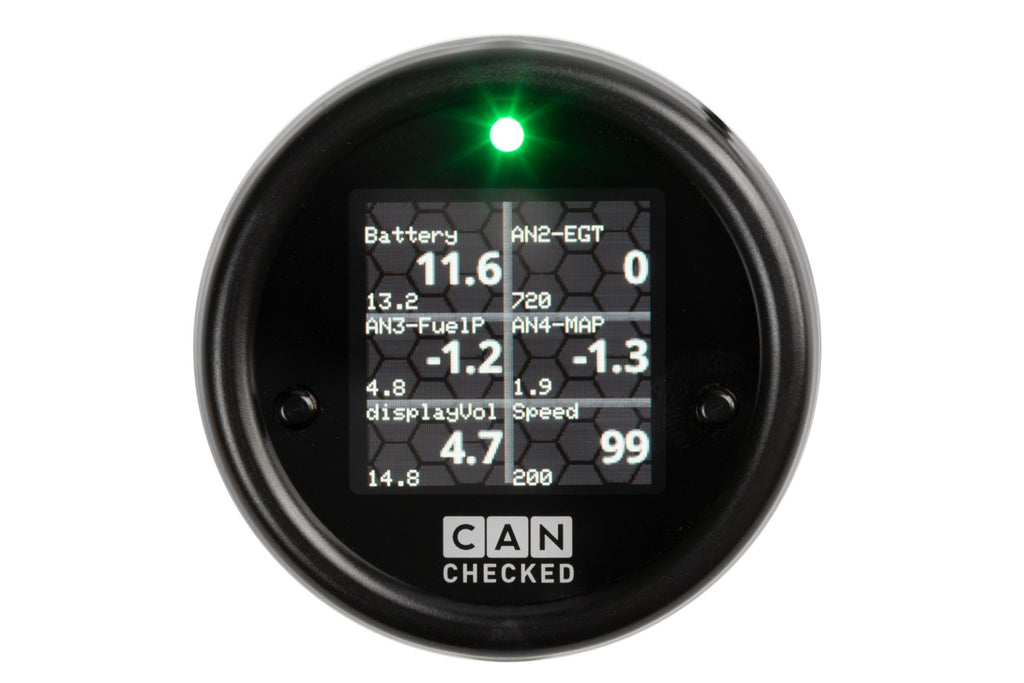

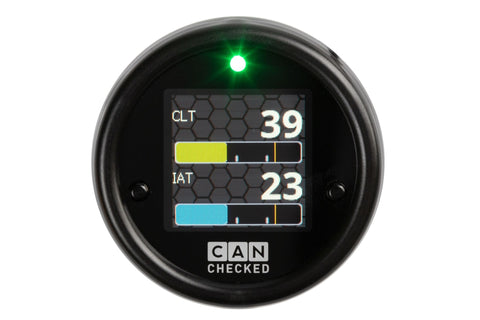

With the MFD15, we bring CANbus into the 52mm display.

  • 52mm Round Gauge
  • Bright and Easily Readable Colour OLED display
  • Fully Programmable CANbus settings
  • OBDII integration
  • Compatible with majority of standalone ECUs
  • SIX analog inputs for additional sensors
  • IO Expander for Haltech, Link, ECU Master, Emtron and more!
  • User definable warning thresholds per sensor
  • Integrated RGB LED – fully configurable warning ligh

Online DSS – oDSS

A completely new feature of our MFD15 Gen2 is access to the device via WiFi. So you no longer need a laptop/PC for the settings on your display. Configure your MFD15 from your smartphone!

MFD15 oDSS website wifi setup



Supported ECUs and Vehicles:

Many customers always ask: “Which values ​​can I request from my control unit”. The answer: ” ALL “. Our MFD15 is compatible with ISO 11898-2 and SAE J2284.

The control unit manufacturers themselves determine which values ​​are sent via the CAN bus interface. Documentation is important here – possibly even in the form of a DBC file that can be imported via CANchecked DSS software . You can also access our extensive list of already implemented controllers. These can be found in the  CANchecked download area . A total of up to 64 sensors can be queried if the manufacturer supports this.

Data available in the broadcast as well as OBD2 queries via Can Bus (11bit/29bit) are implemented. Special protocols such as UDS are also available.

  • Included as standard are:
    – OBD2 – 11bit/29bit
    – Ecumaster Classic and Black
    – DTAfast
    – BMW E46 Can Bus
    – BMW E90 Can Bus
    – Haltech v2
    – Hondata
    – KMS van Kronenburg
    – LinkECU
    – MaxxECU
    – Motec M1
    – Emtron
    – Megasquirt 2 and 3
    – Syvecs
    – Trijekt
    – VW/AUDI PQ34/PQ35 etc.
    – Audi S1 ​​(CJX)
    – Audi RS3/TT-RS (DAZA, ​​DNWA/B/C)
    – VW UP GTI (DKRA/B/C /D)

If your ECU or Vehicle is not listed, please send us a message: Contact

Vehicle Specific Integration

We offer custom air vent bezel for many vehicles. This contains:
– MFD15 Gen2
– vehicle-specific holder/cover in 52mm diameter
– matching OBD connection cable

Currently available integrations:
– Audi A1 8X (incl. S1)
– Audi A3 8P (incl. S3/RS3)
– Audi A3 8V (incl. S3/RS3)
– Audi TT 8N (without connection cable)
– Audi TT 8J (incl . TT-RS)
– VW Up (incl GTI)
– Skoda Citygo
– VW Amarok vFL
– VW New Beetle Facelift
– Fiat 500 / Abarth 595
– Nissan Skyline GT-R R33 (without connection cable)
– Mazda MX5/Miata NC + ND
– Mini Cooper R56
– Ford Fiesta Mk6 + Mk7

Please enquire about these products with us as we build our website to accommodate these products.

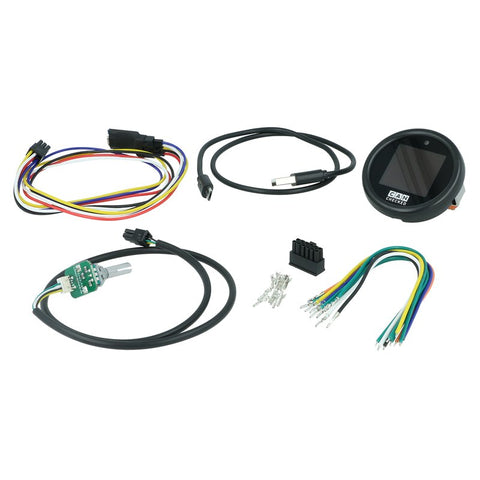

In the box

Each Gen2 MFD15 includes:

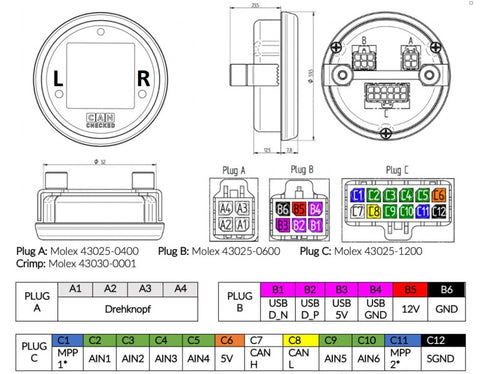

– Connector B (6-way)
– Connector C (12-way)
– 20cm pre-crimped connection cable for power supply, CAN bus, analog inputs, 5V and sensor ground
– Pins to crimp yourself
– Two 1K resistors (for pull-up for NTC sensors)

Full documentation can be found on the CANChecked Website
